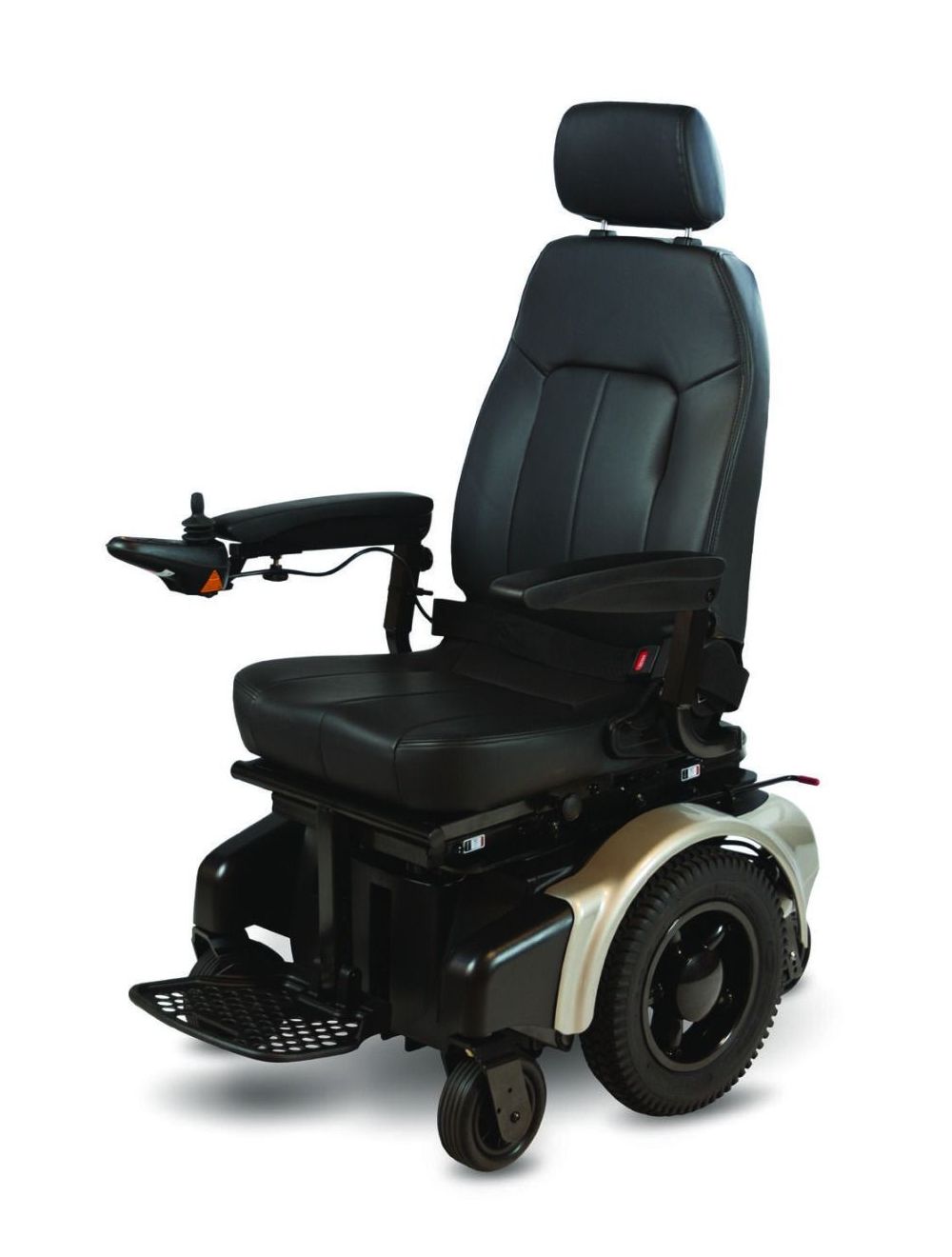

The XLR 14 Power Chair is equipped with large 14” Drive Wheels. The self-adjusting Mid-Wheel Drive suspension system is matched with four independently suspended front and rear casters. This provides the added stability of having six points of contact with the ground. When accompanied with the full independent suspension system, the XLR14 provides a smooth driving experience that will handle virtually any driving surface. A natural fit with our power tilt seating system, which offers a 50˚ of tilt. The XLR 14 also has a flip forward seat for easy battery access to our Xtra Long Range battery options, and comfortably accommodates a 300 lb. weight capacity.
SKU | XLR14-SS |
---|---|
HCPCS | K0835/K0836 |
Weight Capacity | 300 lbs |
Maximum Speed | 4 mph |
Per Charge Range | up to 16 miles |
Total Weight | 283 lbs |
Seat Depth | 16" |
Seat-to-Floor Height | 18" - 21" |
Overall Length | 43" |
Overall Width | 24.8" |
Front Wheel Size | 6" solid |
Mid Wheel Size | 14" flat-free |
Rear Wheel Size | 5" solid |
Controller | VR2 Power Module 60A |
Suspension | Active/Independent |
Drivetrain | MWD |
Ground Clearance | 2.75" |
Max Climbing Angle | 6° |
Charger | 8A off-board |
