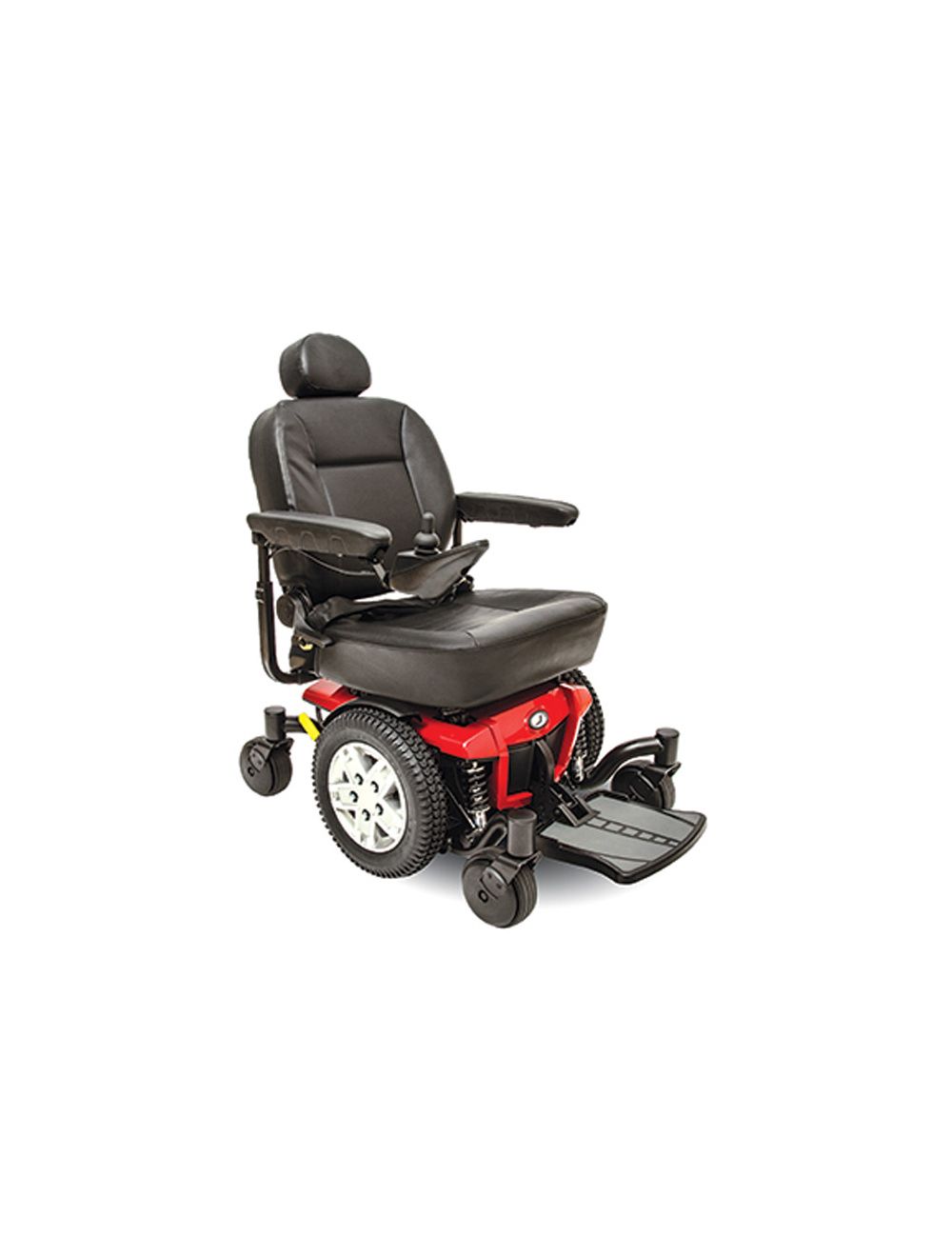

The Jazzy® 600 ES features patented Mid-wheel 6® technology and Active-Trac® ATX Suspension for an extraordinary level of performance, maneuverability and the tightest turning radius in the Jazzy line.
Mid-wheel 6 technology incorporates ATX Suspension for extra stability with independent front casters that raise and lower as needed to compensate instantly for changes in terrain and ease of transitions.
The Jazzy 600 ES offers true all-around performance indoors and out, transitions curbs smoothly and is rated for climbing and aggressive performance, making it an excellent power chair choice.
SKU | Jazzy600ES |
---|---|
HCPCS | Group 2: Standard (K0822/K0823) |
Weight Capacity | 300 lbs. |
Maximum Speed | 4 mph |
Per Charge Range | up to 16.5 miles |
Driving Range | 17.1 Miles |
Product Weight | 240 lbs. |
Heaviest piece | 124 lbs. |
Seat Depth | 18" - 20" |
Seat-to-Floor Height | 21" - 24" |
Overall Length | 35.5" |
Overall Width | 24.25" |
Front Wheel Size | s 6” solid OMNI-casters |
Mid Wheel Size | 14" |
Rear Wheel Size | 6” solid OMNI-casters |
Controller | 50A, Dynamic Shark controller |
Motor | Two-motor, in-line, mid-wheel drive |
Color | Red |
Drivetrain | MWD |
Turning Radius | 20.5" |
Ground Clearance | 2.7" |
Number of Batteries Included | 2 Lead Acid |
Batteries | 12 volt |
Battery Type | NF-22 |
Battery Weight | 37 lbs. each |
Charger | 5A, off-board |
Warranty on Batteries | 13-month limited on batteries. |
Warranty on Motor | 13-month limited warranty on drive motors; |
Warranty on Frame | Five Year Limited |
Warranty on Electronics | 13-month limited warranty on electronics; |
Shipping Weight | 161 lb |
